单塔转鼓式干燥机(器)

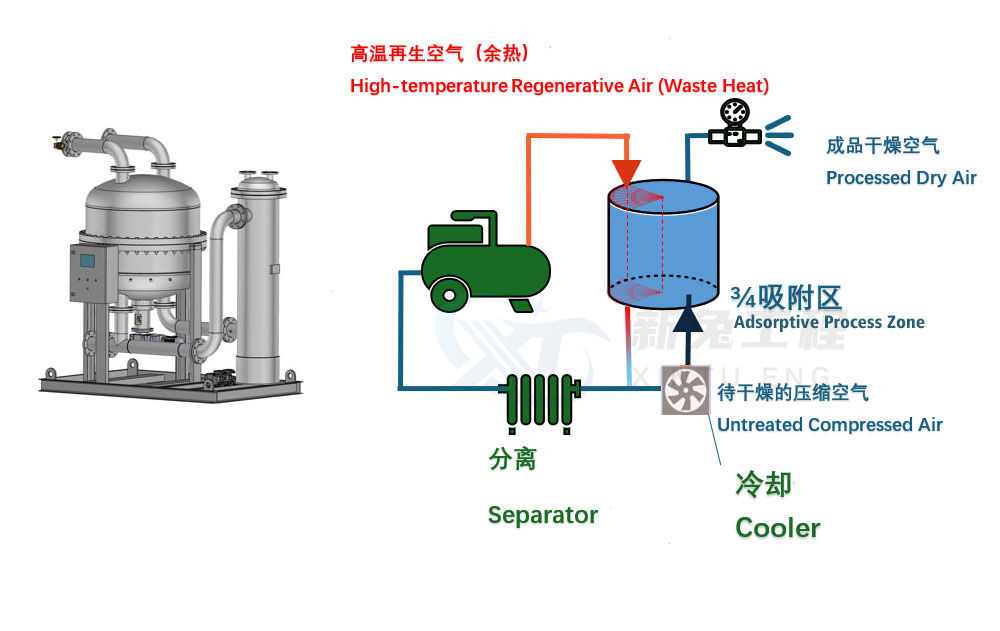

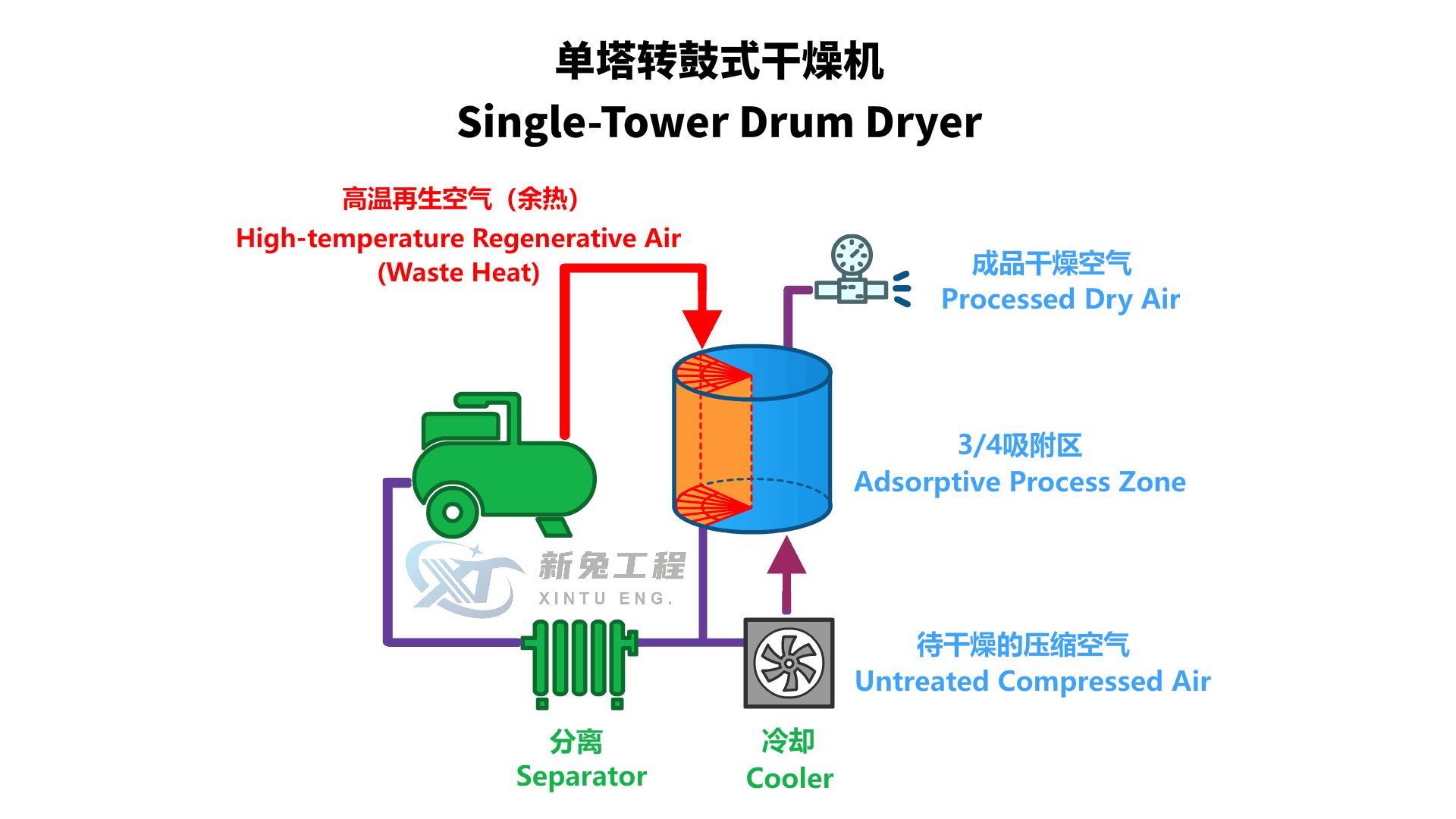

单塔转鼓式干燥机采用TSA技术，利用压缩气体热量，对吸附后的吸附区域进行加热再生，经过再生冷却器冷却后排出压缩空气中的水份；经过吸附转鼓后，可得到不高于常压露点-20℃的干燥成品气。该流程为连续运转，无切换吸附塔的过程。

The single-drum rotary dryer employs TSA (Temperature Swing Adsorption) technology, utilizing heat from compressed gas to regenerate the adsorption zones after adsorption. The moisture in the compressed air is removed via a regeneration cooler after cooling. After passing through the adsorption drum, the system delivers dry product gas with a dew point no higher than -20°C at atmospheric pressure. This process operates continuously without requiring switching between adsorption towers.

　　特点：Features

　　蜂窝结构的高性能转轮

　　Honeycomb Rotor Concentration Adsorption

　　 利用无油压缩机的压缩余热进行再生

　　Compressed heat recovery and reuse in oil-free compressor regeneration

　　 无压缩空气损失的零气耗工作流程

　　Zero Gas Consumption Workflow in Adsorption Drying Systems

　　投影面积比传统双塔干燥器减小40%

　　40% smaller projected area than twin-tower dryer

　　 运行工况   Working Conditions

　　常温进气温度    NLET TEMPERATURE:≤40℃

　　高温进气温度    HIGH INLET TEMPERATURE:≥110℃

　　电源 Power:    AC380V/3P/50Hz

　　环境温度      Ambient temperature:1-40℃

　　冷却水温度     Cooling water temperature :≤32℃

　　基准应用设计范围：    Baseline design scope of the Application

　　工作压力     Working Pressure: 0.3∽1.4Mpa

　　处理流量Discharge Capacity: 12m³/min∽300m³/min @ 0.7Mpa
